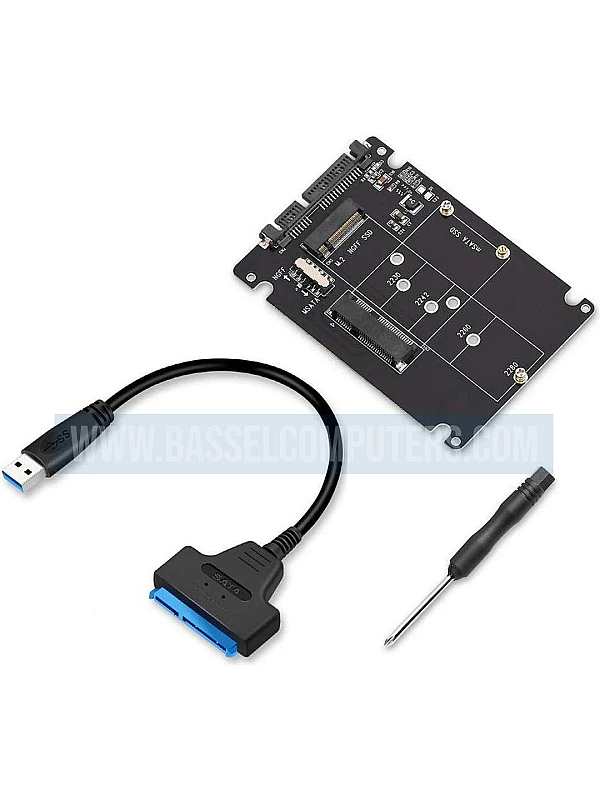

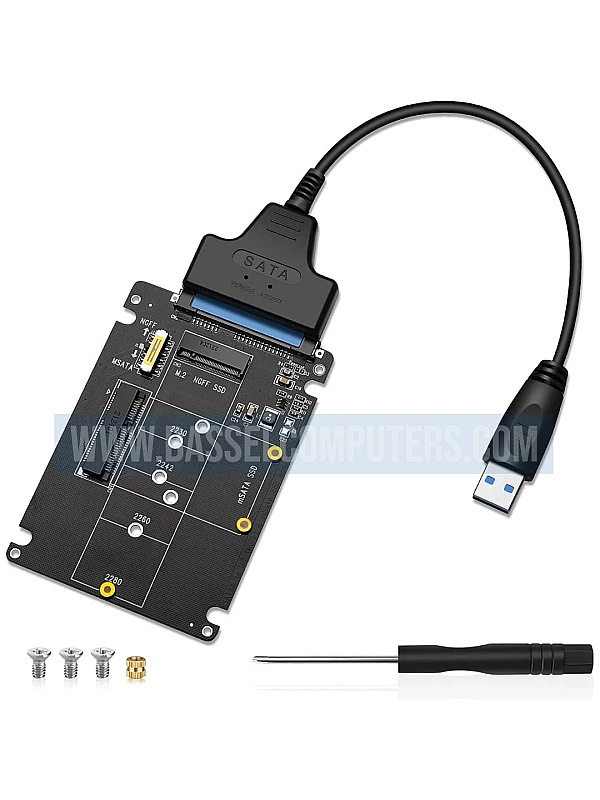

SSD Adapter M.2 NGFF / mSATA to SATA 3.0 Adapter with USB 3.0 – 2-in-1 SSD Converter for 2.5" SATA

The M.2 NGFF / mSATA to SATA 3.0 Adapter is a practical solution for technicians, computer users, and anyone who needs to access, transfer, test, or reuse an SSD outside its original computer. This 2-in-1 adapter supports both M.2 SATA (NGFF) SSDs and mSATA SSDs, allowing compatible drives to be connected to a standard SATA interface or accessed externally through the included USB 3.0 to SATA cable. It is particularly useful when upgrading laptops, recovering files, cloning drives, or testing SSDs without installing them directly inside a computer.

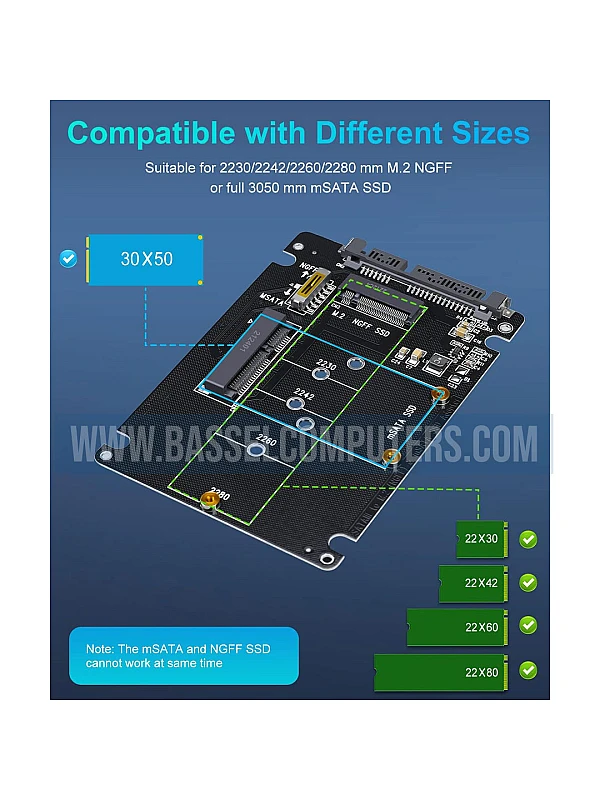

Designed for flexibility, the adapter supports several common M.2 SATA sizes, including 2230, 2242, 2260, and 2280, as well as full-size and half-size mSATA SSDs. Its jumper-switch design allows the adapter to be configured for the installed SSD type, while the board operates as a transfer interface without adding a separate storage controller chip.

With SATA III compatibility and USB 3.0 connectivity, the adapter provides a convenient way to connect compatible SSDs to desktop PCs and laptops. It can also be used as a bootable drive in supported systems without requiring additional drivers, making it a useful addition to a technician's toolkit or computer repair workstation.

KEY FEATURES

• 2-in-1 SSD Adapter – Supports compatible M.2 NGFF SATA and mSATA SSDs using one adapter board.
• M.2 SATA / NGFF Support – Compatible with M.2 SATA SSD sizes 2230, 2242, 2260, and 2280.
• mSATA SSD Support – Works with both full-height and half-height mSATA SSDs.
• SATA III Interface – Supports the SATA 3.0/3.1 standard for compatible drives.

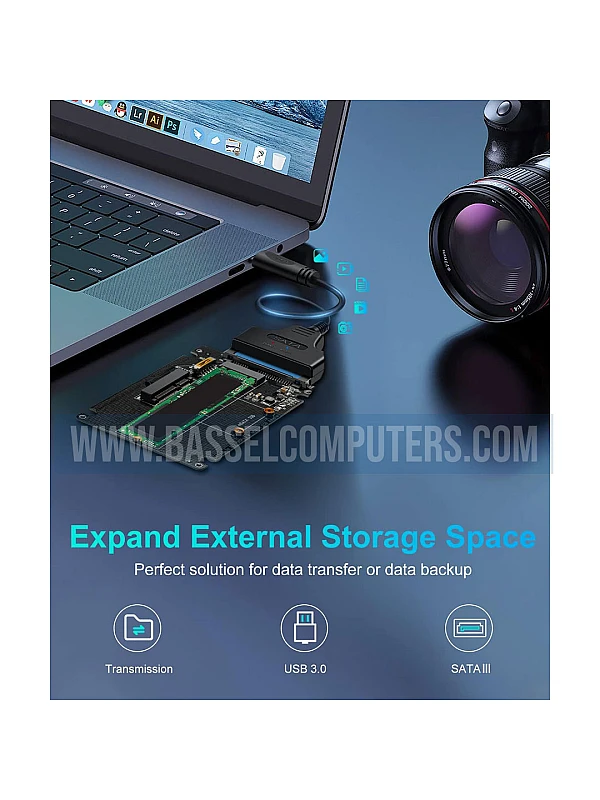

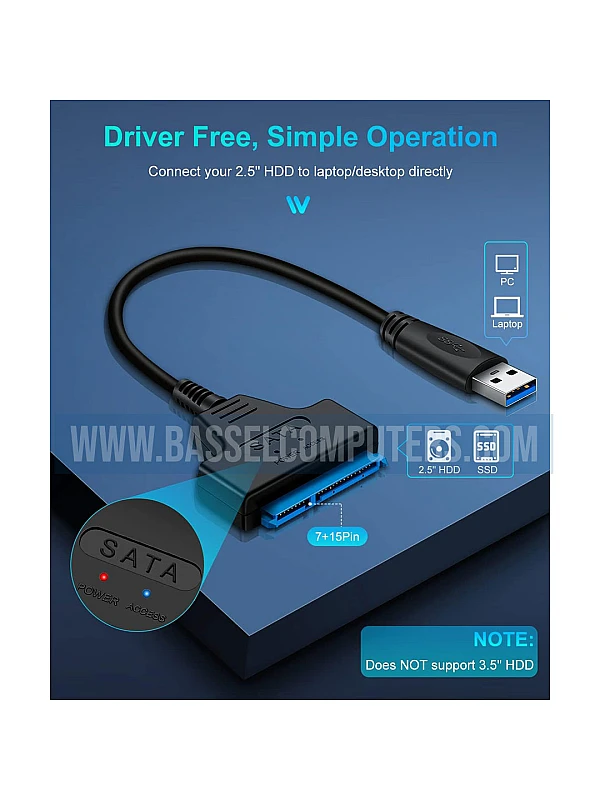

• USB 3.0 Connectivity – Use the included USB-to-SATA cable to access a compatible SSD externally from a PC or laptop.
• Convenient Data Transfer – Ideal for moving files, cloning drives, backing up data, and accessing an SSD outside its original system.
• Bootable Drive Support – Can be used as a bootable disk on supported systems without requiring an additional driver.

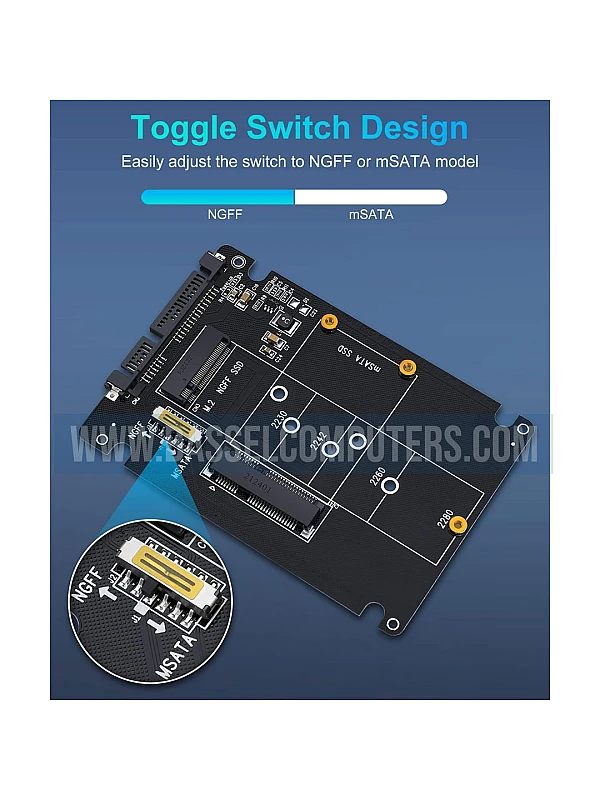

• Jumper Switch Design – Allows selection of the appropriate SSD mode when using the adapter.
• One SSD at a Time – The adapter supports either an M.2 NGFF or mSATA SSD at one time; both cannot be used simultaneously.
• Windows & Mac Compatible – Suitable for supported Windows and macOS systems.
